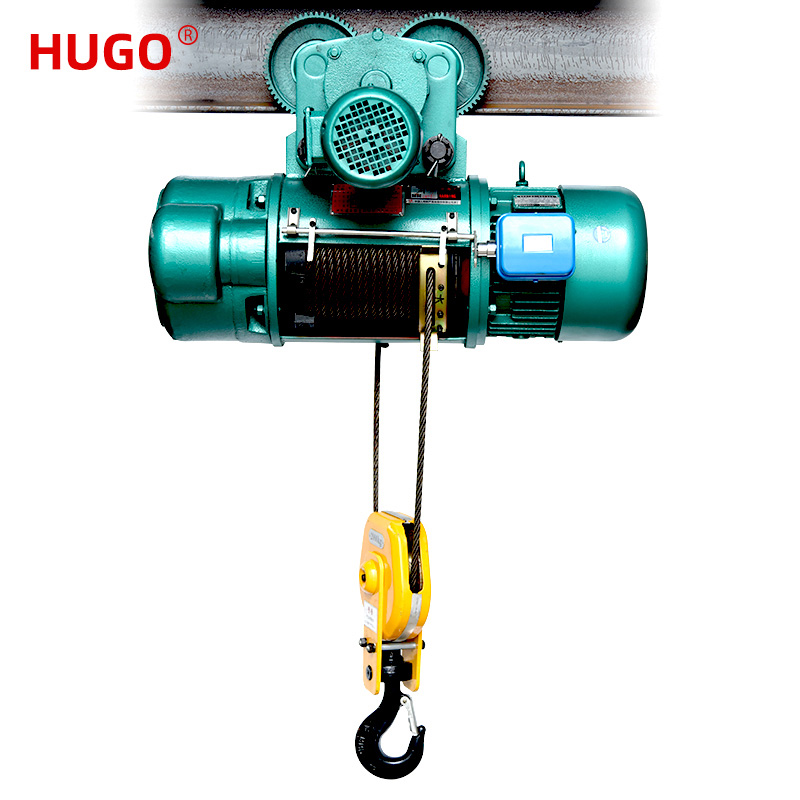

Wire Rope Hoist

The wire rope hoist is a compact, lightweight lifting device known for its small size and versatile parts, making it highly adaptable. It excels in various tasks such as lifting, pulling, loading, unloading heavy objects, and even rotating oil tanks during welding processes. Its applications include handling and relocating large to medium-sized concrete structures, steel frameworks, and mechanical equipment. This hoist is well-suited for diverse industries and projects such as construction and installation companies, civil engineering in factories and mines, bridge construction, power plants, shipbuilding, automotive manufacturing, road construction, bridge maintenance, metallurgy, mining operations, slope tunneling, shaft handling, and safeguarding essential infrastructure construction machinery and equipment.

Send Inquiry PDF DownLoad

Product Description

The wire rope hoist is a compact, lightweight lifting device renowned for its adaptability and convenient operation. Its versatility makes it ideal for various tasks such as lifting, pulling, and loading/unloading heavy objects. This hoist is particularly useful for installing and moving large to medium-sized concrete structures, steel frameworks, and mechanical equipment, including the inverted welding of oil tanks.
Its applications span across multiple industries and projects such as construction and installation companies, civil engineering in factories and mines, bridge construction, electric power stations, shipbuilding, automobile manufacturing, highway and bridge construction, metallurgy, mining, slope tunneling, shaft handling, and safeguarding other essential infrastructure construction machinery and equipment.

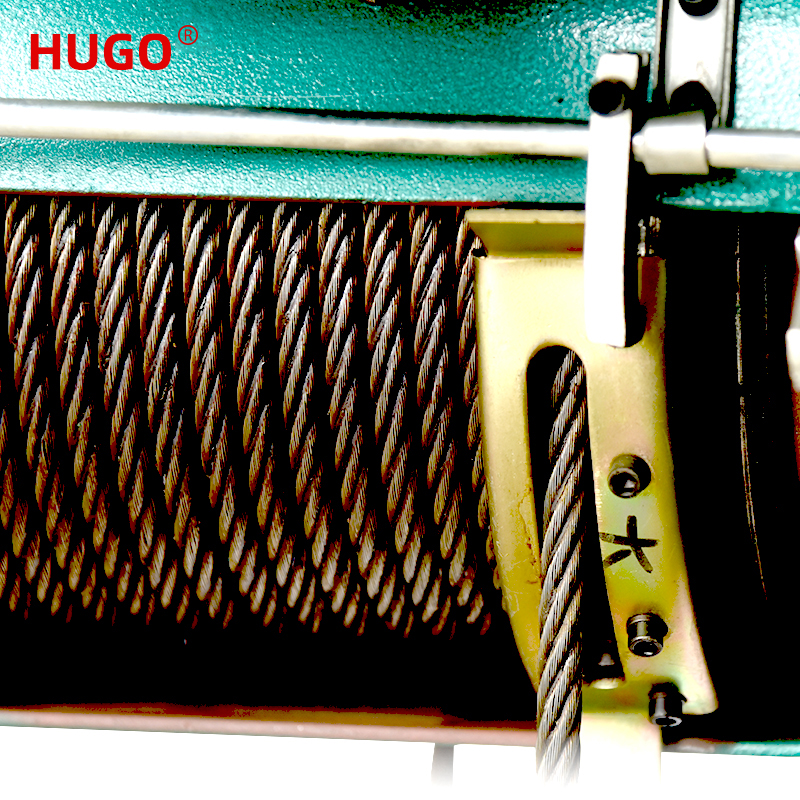

The wire rope hoist can function independently on an I-beam or be mounted on electric or manual single or double beams, cantilever, gantry cranes, and similar structures. The wire rope, a crucial part of its lifting mechanism, significantly impacts the hoist's safe operation. Regular inspection for wear and tear is essential, as worn wire ropes can lead to hoist failure. Proper lubrication and routine checks for secure end fixations are crucial maintenance practices to ensure optimal and safe use of the wire rope hoist.

Specification

model	usage method	Rated voltage (V)	Input power (w)	Rated lifting capacity (kg)	Lifting speed (M / min)	Lifting height (m)	Quantity per piece (PCS)	Package size (cm)	Gross / net weight (kg)
PA200	Single hook	220/230	510	100	10	12	2	44×38×20	24/22
	Double hook			200	5	6
PA250	Single hook	220/230	550	125	10	12	2	44×37×25	25/23
	Double hook			250	5	6
PA300	Single hook	220/230	600	150	10	12	2	47×37×16	26/24
	Double hook			300	5	6
PA400	Single hook	220/230	980	200	10	12	2	52×45×17.5	35/33
	Double hook			400	5	6
PA500	Single hook	220/230	1020	250	10	12	2	52×45×17.5	36/34
	Double hook			500	5	6
PA600	Single hook	220/230	1200	300	10	12	2	53×45×19	41/38
	Double hook			600	5	6
PA800	Single hook	220/230	1300	400	10	12	1	53×28×35	38/36
	Double hook			800	5	6
PA1000	Single hook	220/230	1600	500	10	12	1	53×28×35	40/38
	Double hook			1000	5	6

Feature And Application

The miniature hoist has a stopper, which can be stopped when the hook reaches the highest point during use to ensure that it will not cause danger when the user is negligent

Details

The wire rope hoist is mainly used for various lifting, pulling, loading and unloading heavy objects, and oil tank upside-down welding.The wire rope hoist is more suitable for larger places of use such as large factories, warehouses, wind power generation, logistics, docks, and buildings.

The handle of the wire rope hoist is made of waterproof material, which can be used in harsh conditions, which is not only convenient to use but also safe

The internal components of the wire rope hoist adopt the processing method of 60 degree constant temperature baking, vacuum high pressure painting, and constant temperature baking again. The service life of the motor is naturally longer
