Electric Wire Rope Hoist 1 Ton

The Electric Wire Rope Hoist 1 Ton is designed to move along the trolley attached to I-beams and can be installed on various crane systems like single beam cranes, gantry cranes, jib cranes, and overhead cranes to elevate and lower heavy loads. It finds applications in factories, mines, docks, warehouses, freight yards, and other settings requiring lifting equipment for handling hefty objects. The Electric Wire Rope Hoist 1 Ton is equipped with both an upper and lower hook. The upper hook is linked to the top of the hoist shell, while the lower hook is connected to the end of the rope wound around the rope drum. Notably, the upper hook is positioned on the same vertical line as the electric hoist's center of gravity. Similarly, after the belt rope is guided by the guide wheel, the direction of the rope's end aligns with the center of gravity of the electric hoist. This design ensures a straightforward structure, simplifying installation and usage procedures for enhanced convenience.

Send Inquiry PDF DownLoad

Product Description

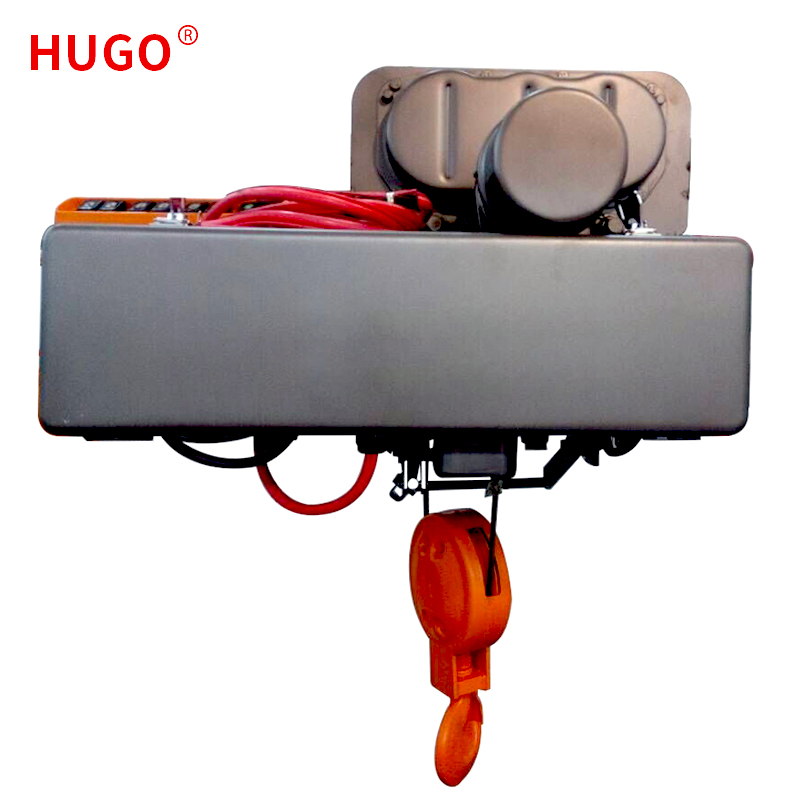

Electric Wire Rope Hoist 1 Ton

The Electric Wire Rope Hoist 1 Ton is a portable lifting device comprising upper and lower hooks. The upper hook is linked to the hoist shell's top, while the lower hook is affixed to the rope end wound around the drum. Notably, the upper hook and the end of the rope are precisely aligned with the electric hoist's center of gravity along a single vertical line. This design enhances the hoist's stability and performance.

This R-type electric cable hoist, utilizing advanced Japanese technology, comes in standard capacities of 1T6M, 2T6M, and 3T6M. It operates on 3-phase power systems of 50Hz/60Hz, available in 220V/380V variations, featuring an overload limit function.

Key Components:Reducer: Utilizes a third-class dead axel helical gear transmission structure, crafted from heat-treated alloy steel for robustness.Button Switch: Offers user-friendly operation, ensuring operator safety, and provides the option of remote or pendant control.Motor: Employs a durable three-phase asynchronous induction motor with an insulation grade of F, ensuring reliability and power.Protection Grade: Maintains an IP54 protection rating, with a work grade of M3.Safety Features: Includes overload limit, widened and reinforced hooks, power-off protection, and an emergency stop system.This Electric Wire Rope Hoist 1 Ton is equipped with safety features and robust components, ensuring efficient and secure lifting operations.

Electric Wire Rope Hoist

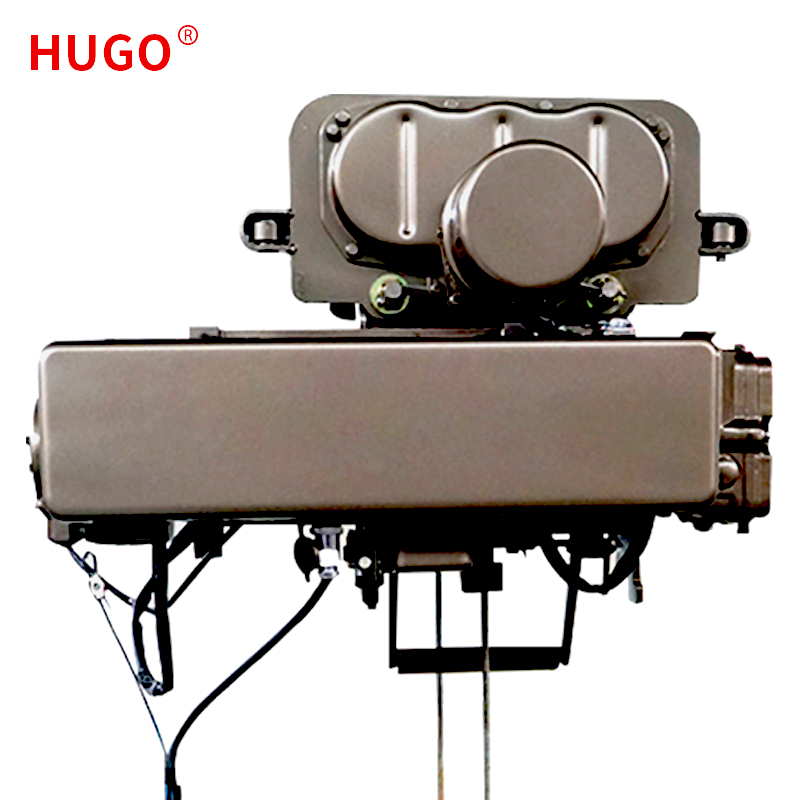

Electric Wire Rope Hoist 1 Ton

Wire rope electric hoists, being versatile lifting equipment, require specific environmental considerations for optimal functionality. Here are notable environmental characteristics for wire rope electric hoist usage:

Rope Guide: When using a single-layer winding method in wire rope electric hoists, installing a rope guide is crucial. This ensures that the wire rope can freely unwind from the rope outlet even when the hook is lowered, without external forces.

Electrical Specifications: For electric hoists with a three-phase AC main circuit, the ideal parameters are a rated voltage of 380V and a frequency of 50Hz. The recommended working temperature ranges between -25°C to +40°C. Additionally, the ground connection resistance should not exceed 0.1Ω, and the insulation resistance at room temperature should be no less than 1.5MΩ.

Protection Standards: The electric motor, electrical devices, and button switches on wire rope electric hoists should meet IP54 requirements according to GB/T4942.1 and GB/T 4942.2 standards.

Enhanced Safety Measures: When lifting fragile, hazardous, or valuable items, it's advisable to raise the working level of the hoisting mechanism and incorporate essential safety protection measures.

Understanding these environmental requirements for wire rope electric hoists allows for more effective utilization, thereby improving work efficiency.

Running electric hoists, an advanced version with lateral mobility on I-beam tracks, are ideal for larger-scale applications like major factories, warehouses, logistics centers, and construction sites. The operational convenience of a 500kg electric hoist's movement can be adjusted precisely above heavy objects without relocating them, making lifting tasks more efficient and labor-saving.

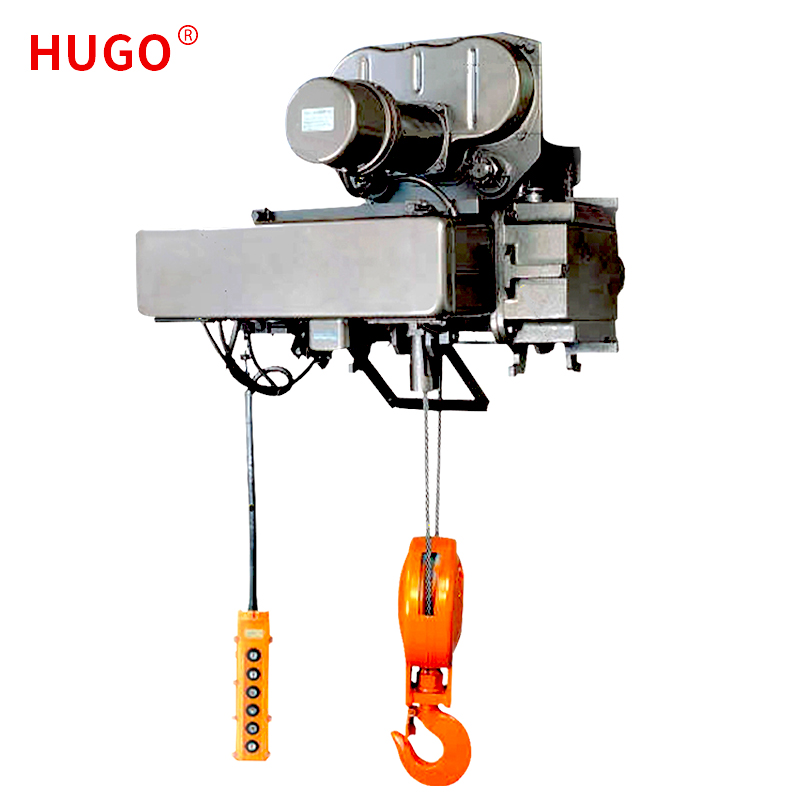

Electric Wire Rope Hoist detail

1. The motor adopts a self-made motive for conical rotation, with upper and lower bidirectional safety limit devices

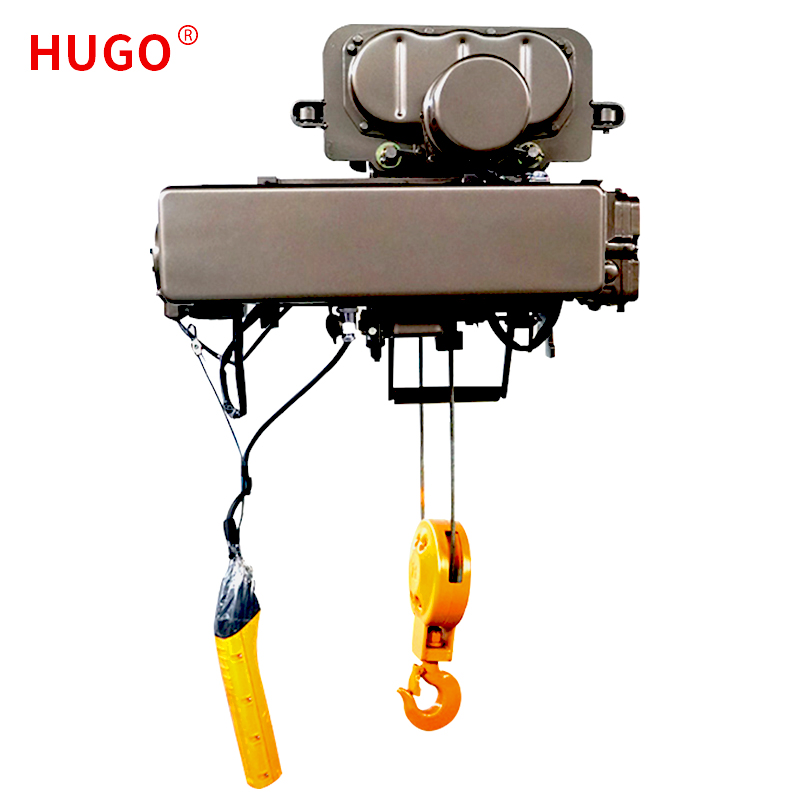

Electric Wire Rope Hoist 1 Ton

2. , The double-speed wire rope hoist has two kinds of lifting speeds, fast and slow, which can ensure the quality of work when lifting, and has better stability and accuracy.

3. The reducer of this electric hoist adopts hard tooth surface transmission design, long service life, high mechanical efficiency and other related characteristics

4. The two-speed wire rope electric hoist is very compact, light in weight, small in size, and very convenient to carry
