Lightweight Electric Winches 110v

The Lightweight Electric Winches 110v, also referred to as civilian electric hoists, come in two main categories: fixed and operating types. These versatile hoists are adept for a wide array of situations, capable of effortlessly lifting loads under 1000 kg. Their particular effectiveness is showcased in high-rise buildings, where lifting heavy objects from lower floors is necessary. Characterized by a straightforward structure, straightforward installation process, compact and refined design, these hoists operate seamlessly using single-phase electricity as their power source.

Send Inquiry PDF DownLoad

Product Description

The Lightweight Electric Winches 110v boast a remarkable lifting speed of up to 10m/min, featuring an initially designed wire rope length of 12m (with customizable lengths available). Notably, these winches incorporate an advanced double hook arrangement, significantly enhancing the lifting capacity of the miniature electric hoist. Operating on a 220V civilian power supply, these winches are particularly well-suited for everyday civilian applications, industrial production lines, and freight logistics scenarios.

Product Specification

Model	PA200	PA250	PA300
Instructions	Single hook/Double hook	Single hook/Double hook	Single hook/Double hook
Motor power(W)	480	510	600
Capacity(kg)	100/200	125/250	150/300
Lifting speed(m/min)	10/5	10/5	10/5
Lifting height(m)	12/6	12/6	12/6
Wire rope dia	3mm	3mm	3mm
Work time	30min	30min	30min
IP class	40	40	40
Insulation grade	B	B	B
Package size	38.529.524cm	2PCS/CTN
G.W.	22-23kg	2PCS/CTN

Model	PA400	PA500	PA600
Instructions	Single hook/Double hook	Single hook/Double hook	Single hook/Double hook
Motor power(W)	950	1020	1200
Capacity(kg)	200/400	250/500	300/600
Lifing speed(m/min)	10/5	10/5	10/5
Lifting height(m)	12/6	12/6	12/6
Wire rope dia	4mm	4mm	4.5mm
Work time	1-2 hours	1-2 hours	2-3 hours
IP class	40	40	40
Insulation grade	B	B	B
Package size	4532.527cm	2PCS/CTN
G.W.	31.5kg 2PCS/CTN	32.5kg	33.1kg

Model	PA700	PA800	PA1000	PA1200
Instructions	Single hook/ Double hook	Single hook/ Double hook	Single hook/ Double hook	Single hook/ Double hook
Motor power(W)	1250	1300	1600	1800
Capacity(kg)	350/700	400/800	500/990	600/990
Lifting speed(m/min)	8/4	8/4	8/4	8/4
Lifting height(m)	12/6	12/6	12/6	12/6
Wire rope dia	5mm	5mm	6mm	6mm
Work time	2-3hours	2-3hours	3-4hours	3-4hours
IP class	40	40	40	40
Insulation grade	B	B	B	B
Package Size(mm)	4532.527cm 2PCS/CTN		562532.5cm 1PCS/CTN
G.W.	36kg	2PCS/CTN	30kg 1PCS/CTN	30.5 1PCS/CTN

Feature And Application

As a cutting-edge electric hoist, the Lightweight Electric Winches 110v have found extensive application in modern industrial setups such as production and assembly lines, logistics transportation, machinery manufacturing, electronics, automotive, shipbuilding, workpiece assembly, and high-tech industrial zones. Notably, in confined spaces like warehouses, docks, ingredient handling areas, and narrow workspaces, its exceptional performance shines through.

It stands out as an exceptional support tool for fixed column and wall jib cranes, enhancing their lifting capabilities significantly. With an attractive appearance, sensible design, ease of installation, minimal noise output, and a track record of safety and reliability, it has become a staple in various settings including factories, workshops, residences, warehouses, restaurants, shopping centers, interior design setups, and transportation hubs.

Products Details

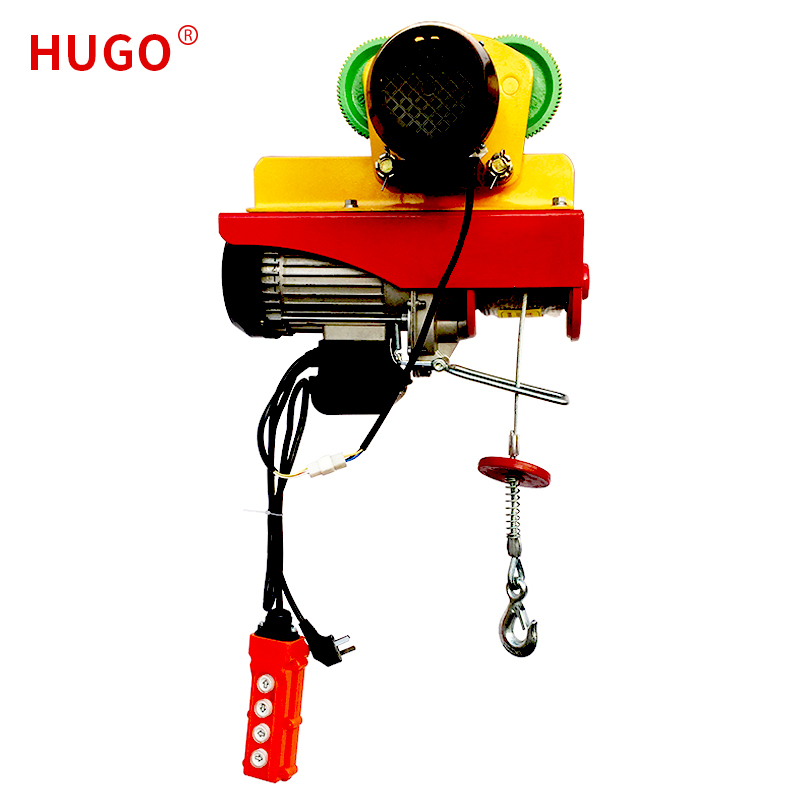

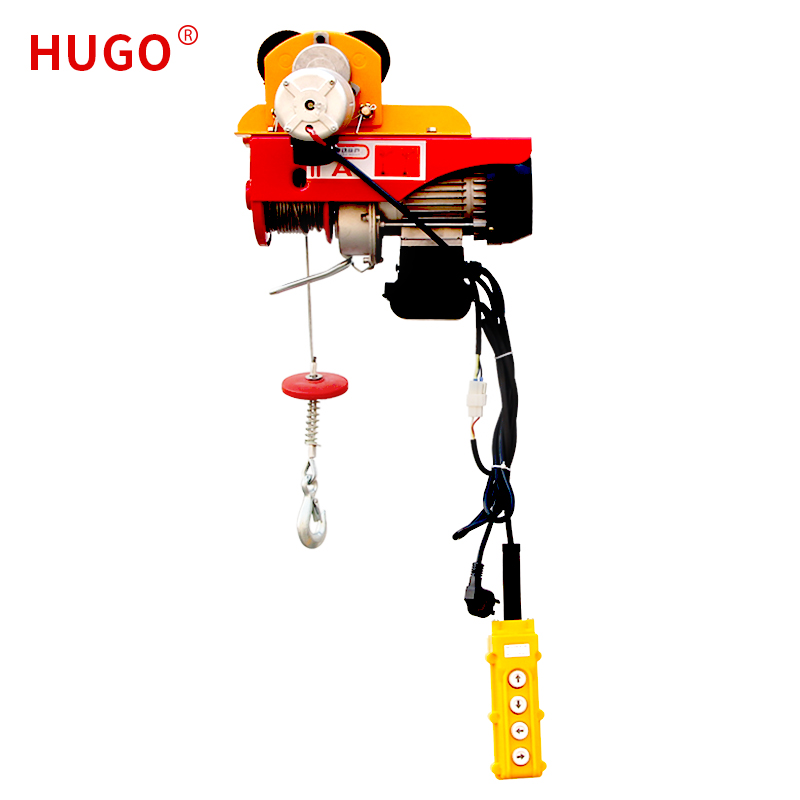

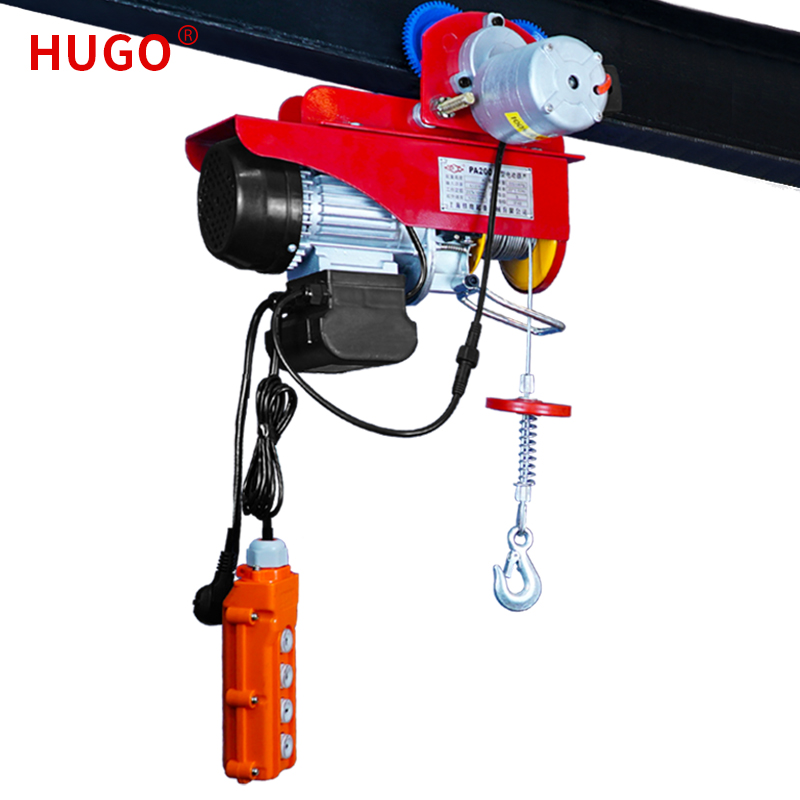

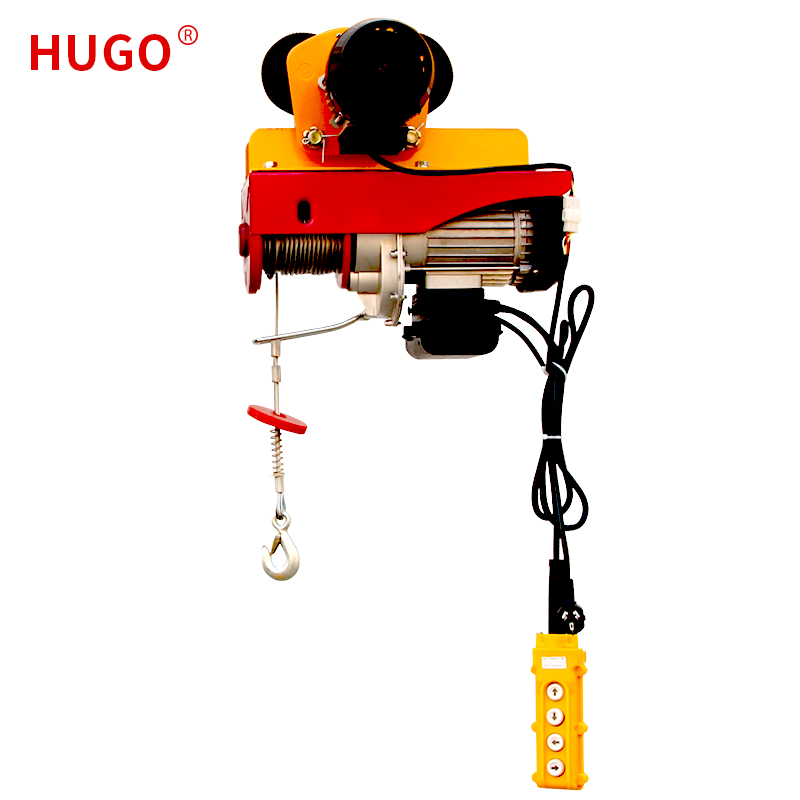

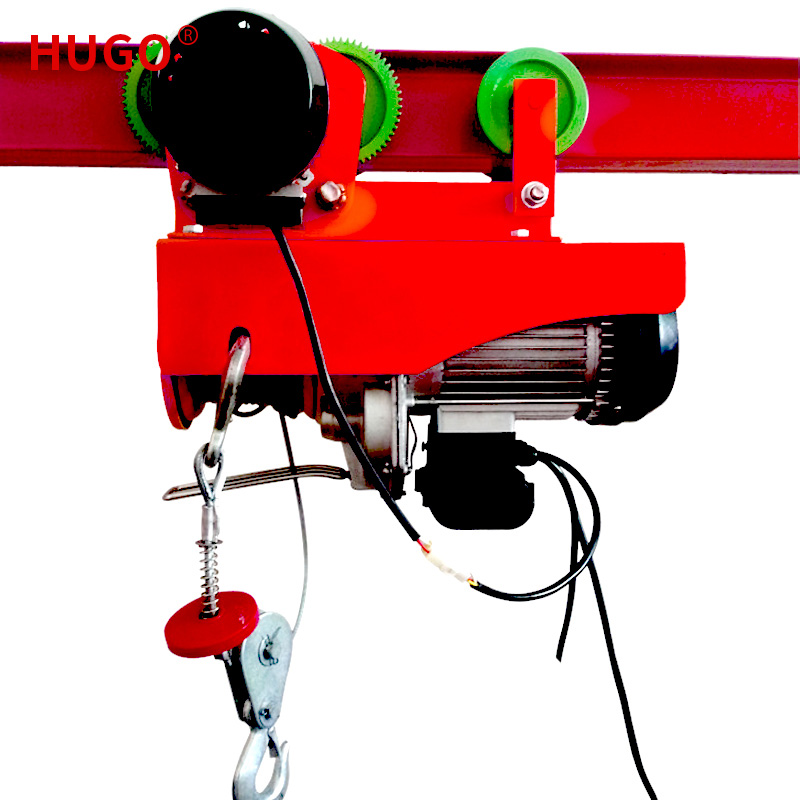

The Lightweight Electric Winches 110v are ingeniously crafted for simplicity and user-friendliness. These winches are equipped with automatic stop mechanisms: when the limit baffle engages the limiter, the operation halts automatically. Additionally, if the wire rope is lifted in the reverse direction, the hoist motor ceases operation automatically as a safety measure.

The hook design of these winches offers versatility, catering to both dynamic and static loading scenarios. They are compatible with household 110V/220V power supplies, featuring a plug-in power cord for effortless use. Moreover, the hoist hook's 360° rotation capability adds to its convenience and adaptability.
