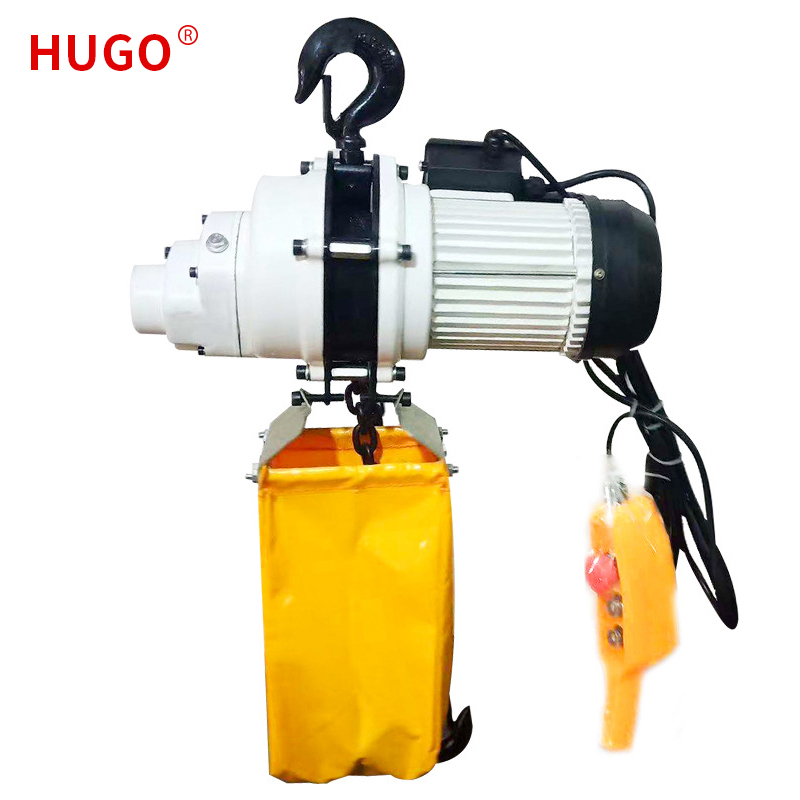

Harbor Freight Electric Hoist

The Harbor Freight Electric Hoist, also known as a civilian electric hoist, comes in fixed and operational types, designed to lift loads of up to 1000 kg. It is especially practical for lifting heavy objects in high-rise buildings from lower floors. Engineered to international standards in production and design, this hoist prioritizes safety during use. Its motor heat sink features a cast iron structure, significantly enhancing its durability. The miniature electric hoist achieves a lifting speed of up to 10m/min, with the wire rope initially set at a length of 12m (customizable lengths available). This hoist is equipped with an advanced double-hook design, significantly increasing its lifting capacity. It operates on a 220V civilian power supply, making it highly suitable for everyday civilian usage, industrial production lines, freight logistics, and various other applications.

Send Inquiry PDF DownLoad

Product Description

The miniature electric hoist, a contemporary addition to electric hoists, finds extensive application across various industrial sectors. It is employed in modern production lines, assembly machines, and logistics transport in industries spanning machinery manufacturing, electronics, automobiles, shipbuilding, and high-tech zones. Its versatility shines in warehouse operations, dock work, material handling in confined spaces, and assembly tasks. This hoist perfectly complements fixed column and wall jib cranes, offering an appealing blend of aesthetics, practical design, easy installation, minimal noise, and reliable safety features. Consequently, it's a ubiquitous presence in factories, workshops, residences, warehouses, restaurants, shopping centers, and transportation systems, playing an essential role in diverse settings including decoration, logistics, and beyond.

Product Specification

	DU-160A	DU-180A	DU-230A	DU-250A	DU-300A	DU-280A	DU-360A	DU-500A
Max Lift Height (M)	30	30	30	30	30	60	60	30
Dia of Wire Rope (mm)	4	5	5	5	5	5	5	6
Lift Speed (M/Min)	19	19	19	19	19	13	13	13
Max Lift Weight (KG)	160	180	230	250	300	280	360	500

The Harbor Freight Electric Hoist is a compact and lightweight lifting apparatus known for its versatile structure, easy handling, and convenience. Primarily utilized for various lifting, pulling, and loading operations, it serves diverse purposes including the inversion of oil tanks during welding. Its applications encompass the installation and relocation of large-scale concrete, steel structures, and mechanical equipment.

This hoist finds its niche in civil engineering, bridge construction, factory operations, mining, electric power generation, shipbuilding, automobile manufacturing, construction projects, and infrastructure development such as highways, bridges, metallurgy, mining, slope tunnels, and shaft treatments. Its adaptability and functionality make it an essential piece of equipment across multiple industries and construction projects.

Products Details

Harbor Freight Electric Hoist Using brush less motor series excited of high efficiency industrial grade; there are two selected configurations of single-phase voltage (110V/ 220V); its enameled heat levels up to 200 degrees, specifically designed for long crane.

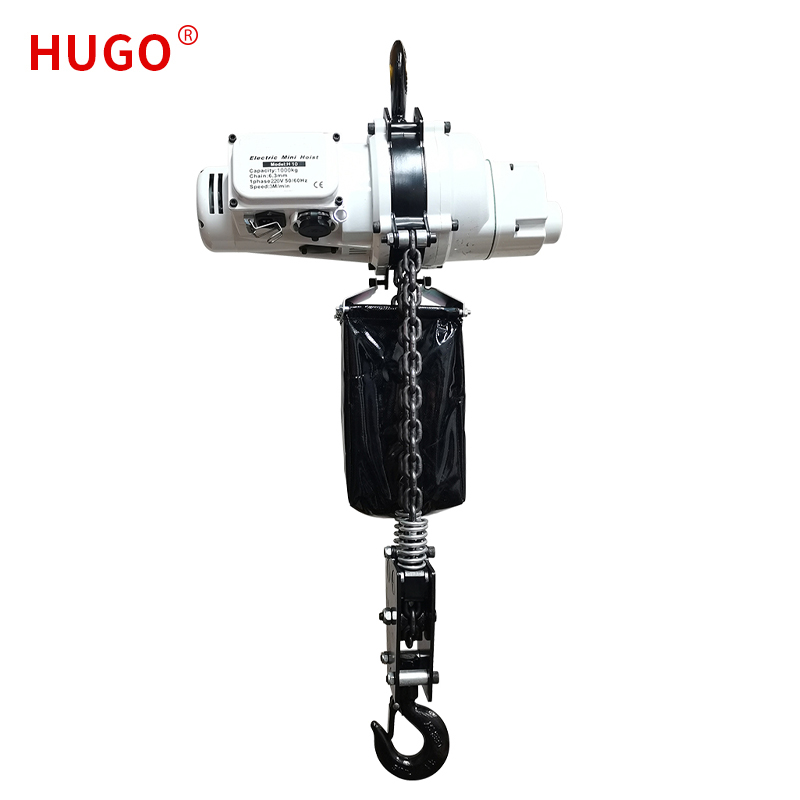

Harbor Freight Electric Hoist

The Electric Hoist features a dual braking system comprising a mechanical ratchet gear brake and a brake resistor short circuit controller. It employs formula-oiled copper disc brakes with a high friction coefficient, ensuring consistent performance without the need for frequent adjustments. This setup guarantees immediate braking in case of power outages or malfunctions, offering both safety and longevity.

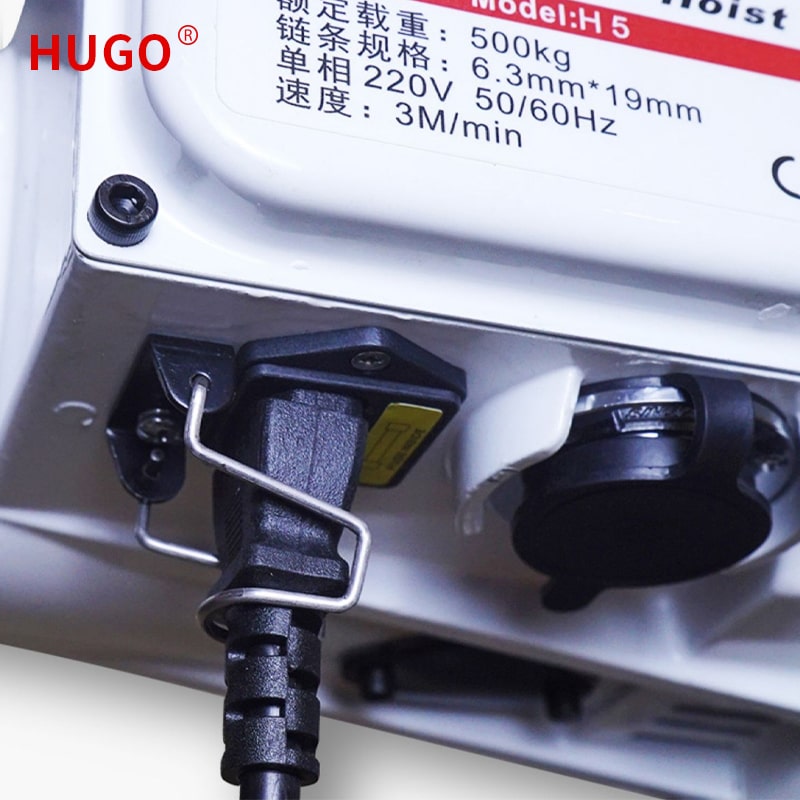

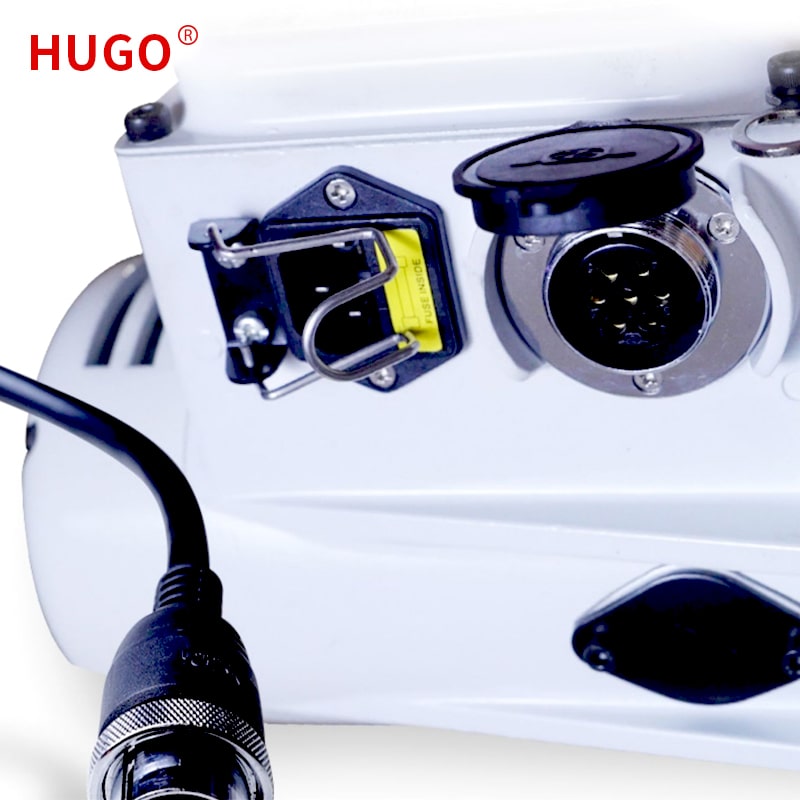

Its direct control mechanism eliminates the need for complex wiring, enhancing ease of maintenance, reducing failure rates, and ensuring stability and security. The control switch, equipped with a separate power line and quick connector, facilitates easy portability and handling.

Crafted through die-casting in a single piece, the motor body and gearbox exhibit exceptional strength and durability. Precision engineered using computer CNC machining, it operates with minimal noise and smoothness. The use of automotive-grade powder coating not only ensures a pleasing appearance but also contributes to its compactness and lightweight design.

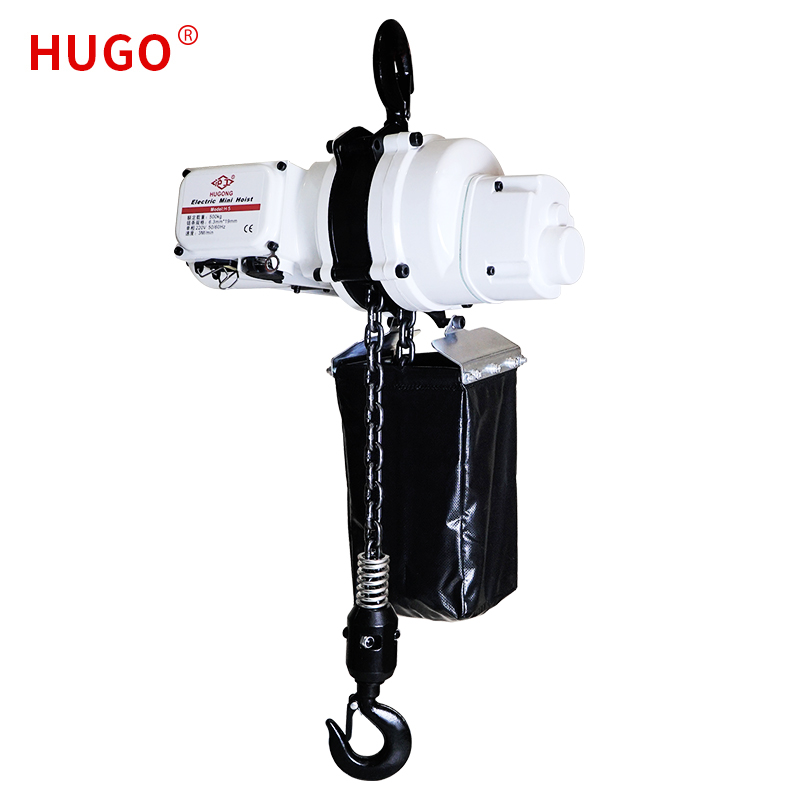

Harbor Freight Electric Hoist
