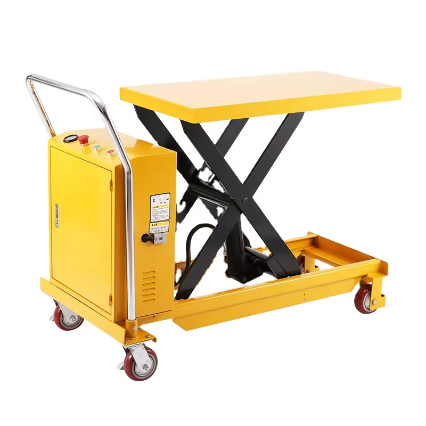

Electric hydraulic platform vehicle

Electric hydraulic platform vehicle Electric hydraulic Table Lifter is often referred to as the lifting platform car.Electric hydraulic Table Lifter is used for the lifting mechanical equipment of aerial operation and maintenance. Electric hydraulic Table Lifter has the characteristics of stable structure, flexible movement, smooth lifting, convenient operation and large load.It is convenient for the working units at high altitude.device.

Send Inquiry

Product Description

Electric hydraulic platform vehicle

Whether you're working in a warehouse, production line, construction site or any other setting where heavy lifting is required, the Hydraulic Table Lifter is the perfect tool for the job.

One of the key features of this product is its hydraulic system, which provides smooth and effortless lifting action. The user-friendly controls allow for precise positioning of your load, while the built-in safety features ensure that your workspace is secure at all times.

Hydraulic Table Lifter Specification

specificationmodel	Fab150	Fac200	Fab350	Fab500	Fac350	Fac500
Load bearing(kg)	150	200	350	500	350	500
Maximum height(mm)	720	2000	900	900	1300/1500	1300/1500
Minimum height (mm)	210	410	280	280	350	350/400
Worktable size	70045040	92566555	82050050	82050050	92050050	92050050
Wheel diameter(mm)	100	125	125	125	125	125
Handle height(mm)	730	960	960	960	960	960
Body length(mm)	780	980	880	880	980	980
Operating weight(kg)	42	137	74	80	103/107	107/113
Outer packing dimensions(cm)	785331	100.568.531	905131	905131	1005031	1005131

Hydraulic Table Lifter Features

One of the biggest advantages of our Hydraulic Table Lifter is that it is incredibly easy to use. It can be operated with a simple push of a button, without requiring any significant physical exertion on the part of the user. This makes it an ideal choice for users of all ages and abilities.

Another benefit of our product is its durability. The Hydraulic Table Lifter is built to last, with a heavy-duty steel frame that can withstand even the toughest conditions. Additionally, it is designed to require minimal maintenance, making it a cost-effective solution for businesses of all sizes.

Hydraulic Table Lifter

①Oil Cylinder

Leak-proof oil-sealed oil cylinder, with stronger load-bearing capacity and stable performance. Fully enclosed oil cylinder, equipped with overload protection device, can effectively prevent overloading, good sealing performance and easy maintenance.

Hydraulic Table Lifter

②Thickened Scissor Fork

The scissor fork is made of high-quality steel. It refuses to cut corners and cut materials to ensure the firmness of the product. Thickened shear forks increase the carrying capacity, ensure the safe and stable lifting of the cargo, and improve the safety ofthe vehicle.

③Upgrading And Thickening Paint Countertops

Durable and corrosion-resistant.

Hydraulic Table Lifter

④Brake Casters

Wear-resistant polyurethane wheel casters with brake function, safe and convenient for daily use, suitable for a variety of floors such as epoxy paint, durable and wear -resistant, strong load bearing capacity, long service life, and reduce floor wear.

⑤Elevator Controller

Pedal lit, there are pull-type handles and rotary stepless adjustment handles to lower, control ascending and descending, simple and convenient operation.

Hydraulic Table Lifter

⑥Ergonomic Handle

Folding handle, chrome-plated handle, with rust and corrosion resistance, beautiful appearance, comfortable grip,hand-held lowering handle, can control the lowering position.
