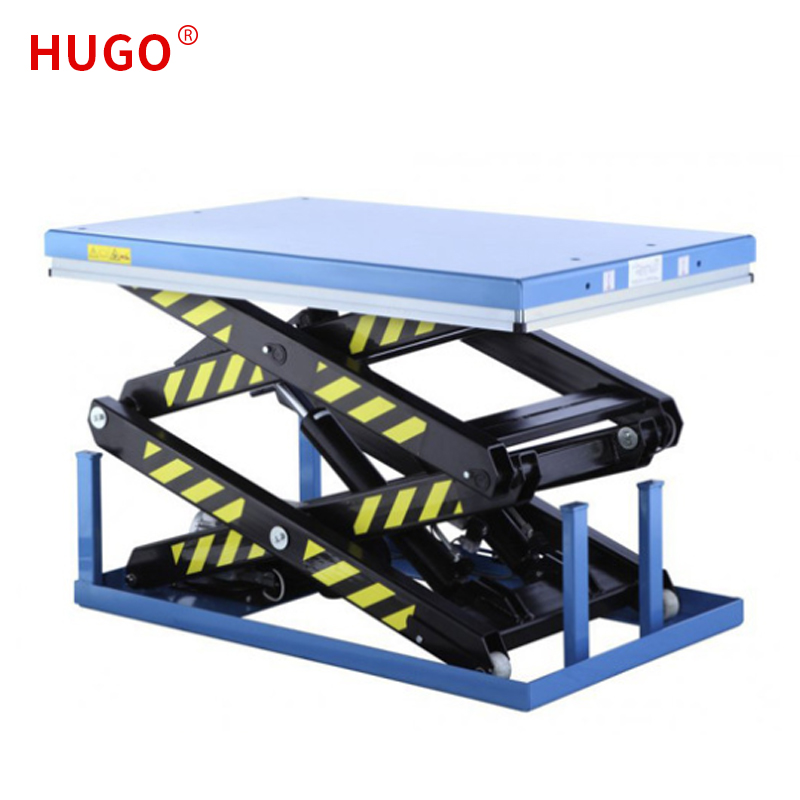

Electric Hydraulic Scissor Lift

The scissor-based mechanical design inherent in the Electric Hydraulic Scissor Lift provides elevated stability, a spacious working platform, and enhanced load-bearing capacity to the lifting platform. This equipment is commonly used to raise loads to various heights in a stable and controlled manner, offering versatility in applications across industries such as construction, warehouses, maintenance, and more. The hydraulic system facilitates smooth and efficient vertical movement, enabling the platform to reach different elevations safely and effectively.

Send Inquiry PDF DownLoad

Product Description

The Electric Hydraulic Scissor Lift stands out for its automated functionality, offering convenience, and flexibility without requiring manual operation. Its lifting speed can be precisely controlled, ensuring efficient and controlled vertical movement. Moreover, this type of lift doesn't rely solely on a power source; it possesses automatic mobility capabilities.

These Electric Hydraulic Scissor Lifts are frequently seen in prominent venues like large stadiums, railway stations, and airports. They play a pivotal role in facilitating effective work operations in such crucial locations. Their sturdy overall structure ensures stability, enabling them to withstand external factors without compromising their performance. This capability guarantees the fulfillment of work requirements while minimizing the need for excessive manual labor and effort.

Specification

	DP300	DP500	DP800	DP1000
Load Capacity（kg）	300	500	800	1000
Min.Height（mm）	280	280	410	410
Max.Height（mm）	900	900	1000	1000
Table Demension（mm）	95050050	95050050	120061050	120061050
Dia.of the wheel（mm）	125	125	150	150
Voltage（V）	12	12	12	12
Power（Kw）	0.8	0.8	0.8	0.8
Storage Battery（Ah）	60	60	60	120
Charger input Voltage（V）	220/110	220/110	220/110	220/110
Net Weight（kg）	110	110	150	150

Feature And Application

The Electric Hydraulic Scissor Lift boasts a robust, secure, and dependable construction. Its design, tailored with an exclusive ergonomic approach, prioritizes safety while enhancing user comfort. This equipment is well-suited for lifting and managing heavy loads within diverse settings like factories, food processing facilities, warehouses, workshops, and similar environments.

Functioning as a solution for high-altitude tasks, the Electric Hydraulic Scissor Lift ensures improved efficiency and safety during elevated operations. Its performance isn't restricted by running distances, delivering stable functionality and an extended service life.

Details

The Electric Hydraulic Scissor Lift uses a sealed oil cylinder with a firm structure to avoid oil leakage, uniform lifting speed, enhanced safety and service life, and high cost performance.

Electric Hydraulic Scissor Lift

The scissor fork of the Electric Hydraulic Scissor Lift adopts reinforced thickened steel plate to enhance the lifting capacity and safe lifting.

Electric Hydraulic Scissor Lift

The Electric Hydraulic Scissor Lift has stable support, adopts dual-brake industrial pu wheels, strong bearing capacity, stable and safe body, sensitive locking, safe and worry-free.

Electric Hydraulic Scissor Lift

The Electric Hydraulic Scissor Lift adopts thickened paint surface, thickened steel plate, and paint process, which is anti-corrosion and anti-rust, firm and beautiful

Electric Hydraulic Scissor Lift
