heavy duty pallet jack are one of the most popular tools of materials handling equipment. it offer an excellent lifting solution for goods loads. heavy duty pallet jack is widely used in workshops, warehouses, docks, stations etc. heavy duty pallet jack is an ideal tool to improve efficiency and reduce labor intensity. So it very popular in the market.
Heavy duty pallet jack are one of the most popular tools of materials handling equipment. it offer an excellent lifting solution for goods loads. It is widely used in workshops, warehouses, docks, stations etc. heavy duty pallet jack is an ideal tool to improve efficiency and reduce labor intensity. So it very popular in the market.
This pallet jack features a durable, reinforced steel frame and high-quality, heavy-duty wheels that ensure smooth and easy movement across warehouse floors, loading docks, and other surfaces. Its ergonomic handle design and responsive controls make it easy to maneuver in tight spaces and around obstacles, reducing the risk of workplace injuries and accidents.
Model |
HC-AC2.0 |
HC-AC2.5 |
HC-AC3.0 |
HC-AC5.0 |
Capacity (kg) |
2000 |
2500 |
3000 |
5000 |
Min. Fork height (mm) |
80 |
80 |
80 |
80 |
Max. Fork height(mm) |
200 |
200 |
200 |
200 |
Lifting Height (mm) |
120 |
120 |
120 |
120 |
Fork length (mm) |
1150/1220 |
1150/1220 |
1150/1220 |
1150/1220 |
Single fork height (mm) |
160 |
160 |
160 |
160 |
overall forks Width (mm) |
550/685 |
550/685 |
550/685 |
550/685 |
load bearing wheel (mm) |
80*70 |
80*70 |
80*70 |
80*70 |
Steer wheel (mm) |
180*50 |
180*50 |
180*50 |
180*50 |
Truck Weight (kg) |
73-92 |
73-92 |
73-92 |
73-130 |
Quantity/20 GP |
180/144 |
180/144 |
180/144 |
180/144 |
Quantity/40 GP |
336/360 |
336/360 |
336/360 |
336/360 |
One of the key features of this pallet jack is its heavy-duty construction. Made with high-quality materials, it is built to withstand heavy loads and constant use, ensuring it will be a valuable addition to your workplace for years to come. Its weight capacity of up to XXXkg makes it ideal for handling large and bulky items, such as crates, boxes, and pallets.
But this pallet jack isn't all brawn and no brains. It also features a range of user-friendly functions that make it easy to use, even for those who are new to handling pallet jacks. The sturdy handle provides a comfortable grip and maximum control so that you can manoeuvre items smoothly, even in tight spaces. The 3-position control lever offers precise lifting, lowering, and neutral positioning, making this pallet jack ideal for loading and unloading trucks, as well as navigating through crowded warehouses.
This pallet jack is not just built for function, but also complements your company's branding with its sleek, timeless design. It is a great addition to any workspace, whether it's a busy warehouse or a sophisticated retail environment.
1. Our heavy duty pallet jack have strong frame. 4mm thickness after painting and each fork have reinforce steel at the bottom to ensure fork not No tilt or deformation.

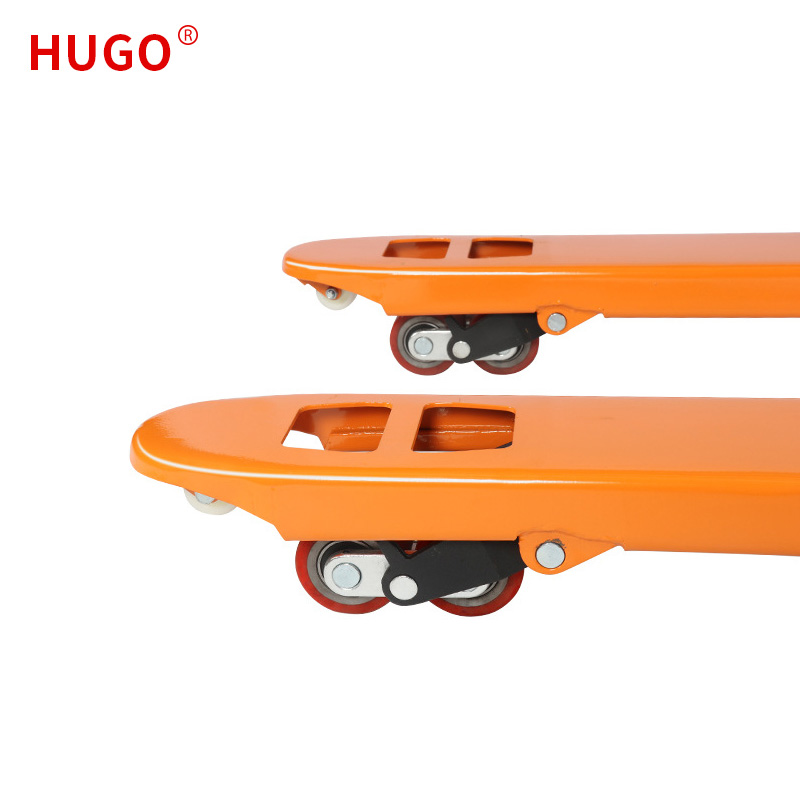

2. Our heavy duty pallet jack have Climbing rollers helps users easily maneuver across dock plates, in and out of trailers and over uneven floors. It can save your labor when use it.
3. The steer and load wheels are engineered with high quality components and bearings to provide a low rolling resistance. Our pallet jack for sale have more optional for your choice. Such as plastic, nylon Pu and Rubber..

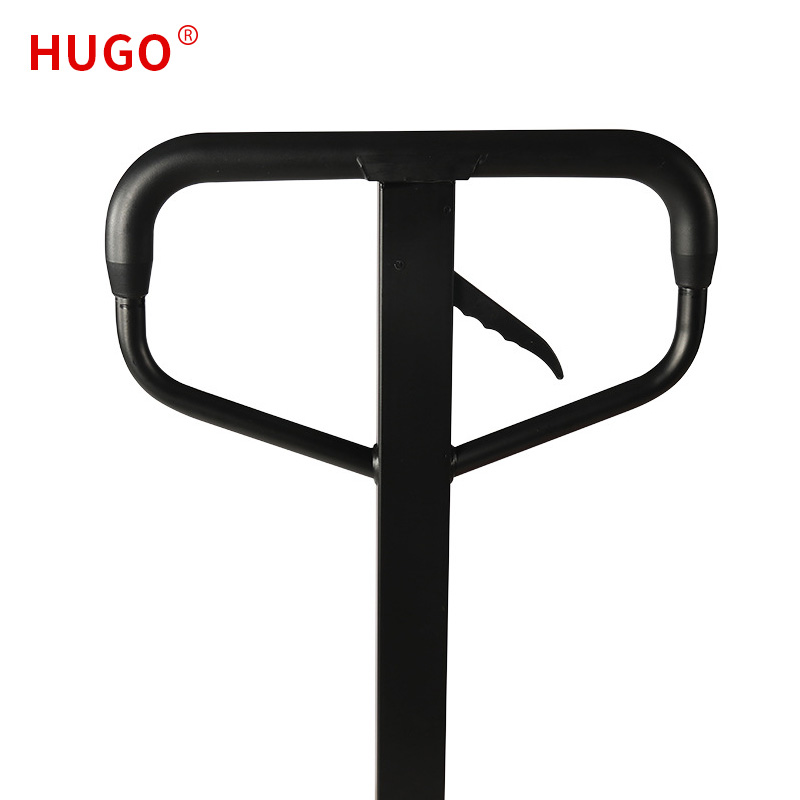

4. Our heavy duty pallet jack is easy to lift up and down. The shape and thickness of the handle along with the design and placement of the control lever reduces operator fatigue and improves productivity. The neutral lever position releases tension on the handle for easier maneuvering. Pallet jack for sale we have two different handle shape.
5. heavy duty pallet jack Rocker arm widened and thickened can ensure the long life.

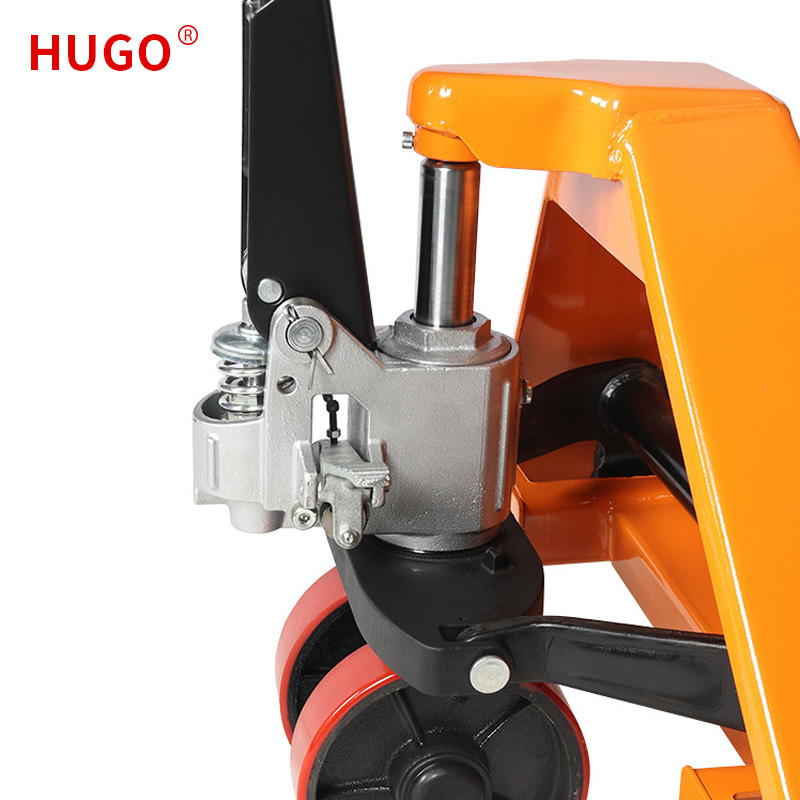

6. heavy duty pallet jack use high quality AC integral pump it is no leak oil and easy to maintain
