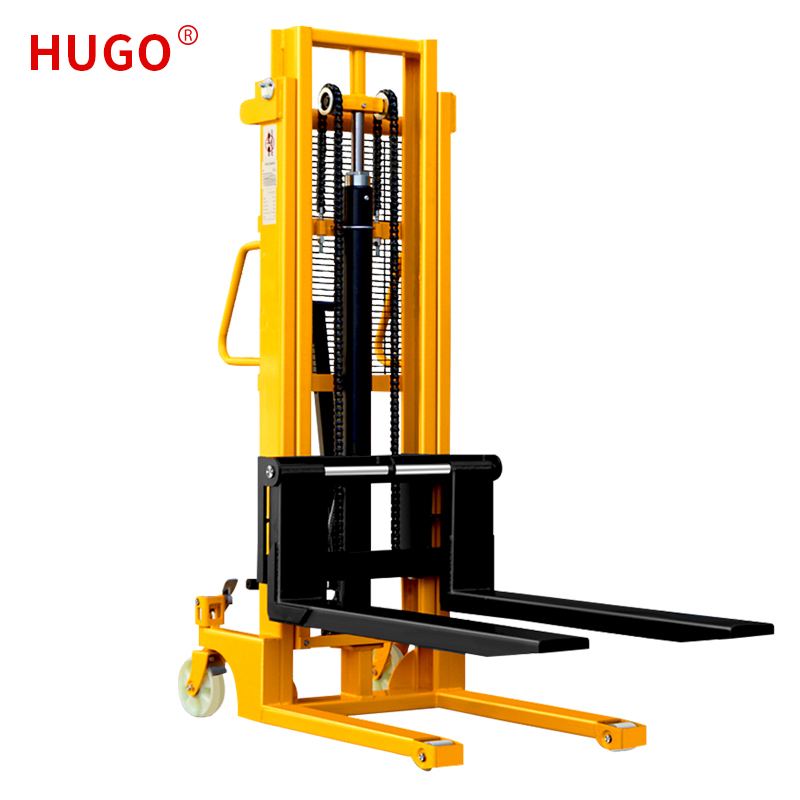

Heavy Duty Hydraulic Manual Pallet Stacker

Heavy Duty Hydraulic Manual Pallet Stacker use manual hydraulic jacks (is hydraulic devices) as power to lift heavy objects, and manually push and pull heavy objects. The hydraulic device is equipped with an oil return valve, which controls the lowering speed of the fork through the handle, and makes the hydraulic system operate correctly, safe and reliable. The front and rear wheels are mounted on the axle with ball bearings for flexible rotation. The wheels are nylon wheels, wear-resistant, durable, and not easy to damage the working ground. The door frame is welded with high-quality section steel, with good rigidity and high strength. The rear wheel uses a universal wheel with a brake device, which can rotate freely and is light and flexible.

Send Inquiry

Product Description

Heavy Duty Hydraulic Manual Pallet Stacker is suitable for production plants, production workshops, warehouses, stations, docks, airports and other places, especially for places with fire-proof and explosion-proof requirements, such as printing workshops, various oil depots, chemical warehouses and other places. Manual pallet stacker can be combined with pallet boxes, containers, etc. to realize unitized transportation, which not only reduces collisions, scratches, etc., but also reduces workload and stacking area, and greatly improves work efficiency.Manual pallet stacker.Manual pallet stacker is a pollution-free manual hydraulic stacker, which has the characteristics of dexterous transportation, flexible operation and small turning radius.

Product Specification

	JD-A1.0	JD-A2.0	JD-A3.0
Rated lifting capacity(kg)	1000	2000	3000
Max. lifting height(mm)	1600	1600	1600
Lowered height of forks(mm)	100	100	100
Fork length(mm)	900	900	1000
Adjustable width of forks(mm)	200-580	240-680	300-770
Outer width of front legs(mm)	720	740	750
Operation power of crank(kg)	24	32	40
Min. refuel volume for fuel tank(L)	1.6	2.0	3.0
Front wheel size(mm)	Φ100x50	Φ100x50	Φ100x50
Rear wheel size(mm)	Φ180x50	Φ180x50	Φ180x50
Overall size(mm)	2050x730x1380	2050x740x1480	2050x740x1650
Self weight(kg)	115	180	280

Product Feature And Application

Heavy Duty Hydraulic Manual Pallet Stacker is suitable for production plants, production workshops, warehouses, stations, docks, airports and other places, especially for places with fire-proof and explosion-proof requirements, such as printing workshops, various oil depots, chemical warehouses and other places. Heavy Duty Hydraulic Manual Pallet Stacker is suitable for loading, unloading and stacking of goods in factories, workshops, warehouses, stations, docks, etc.Manual pallet stacker is more suitable for places with fire and explosion-proof requirements (such as printing workshops, oil depots, docks, warehouses, etc.). If used in combination with pallets, containers, etc., the Manual Stacker can effectively reduce collisions, scratches and stacking areas of parts, reduce handling workload, and improve handling efficiency. With a small turning radius, the Manual Stacker Truck is suitable for machinery manufacturing, papermaking, printing, handling, logistics and other industries.

4.Electric hoist 2tons Details

Heavy Duty Hydraulic Manual Pallet Stacker mast is made of heavy-duty "C" steel column steel, cold-formed. Make the door frame stronger, safer, flexible to move, easy to operate and labor-saving.

Manual Pallet Stacker

2. The hydraulic cylinder of the Heavy Duty Hydraulic Manual Pallet Stacker adopts high-precision grinding tube, imported oil seal, and integrated valve core, which is convenient for disassembly and maintenance; the pressure relief method adopts the pedal type, the lifting speed is stable, and the safety is greatly improved.

Manual Pallet Stacker

Heavy Duty Hydraulic Manual Pallet Stacker adopts advanced plastic spraying technology to improve the appearance of the product and increase the durability of the manual hydraulic stacker.
