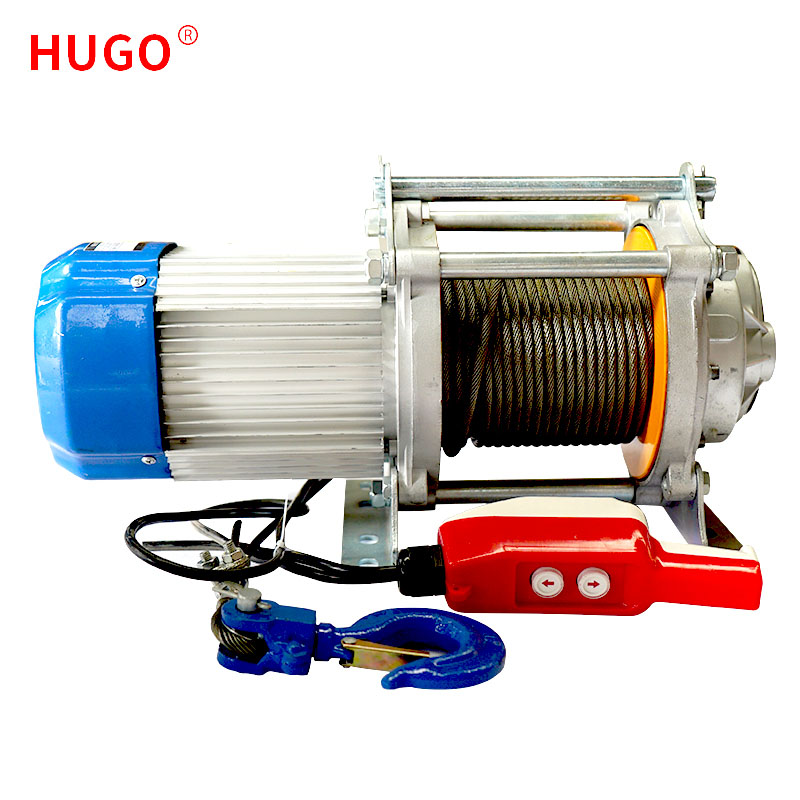

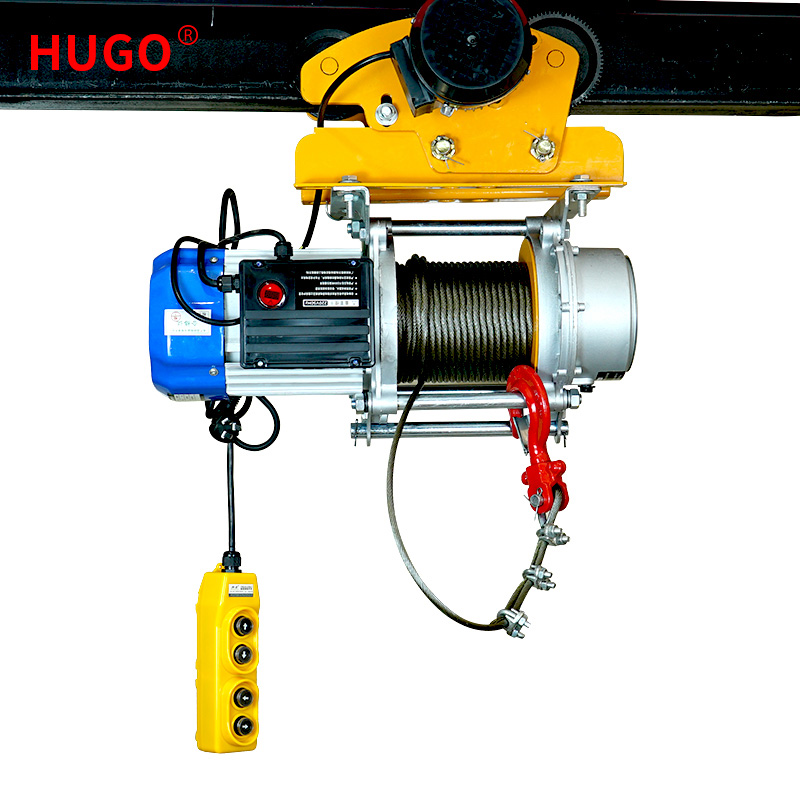

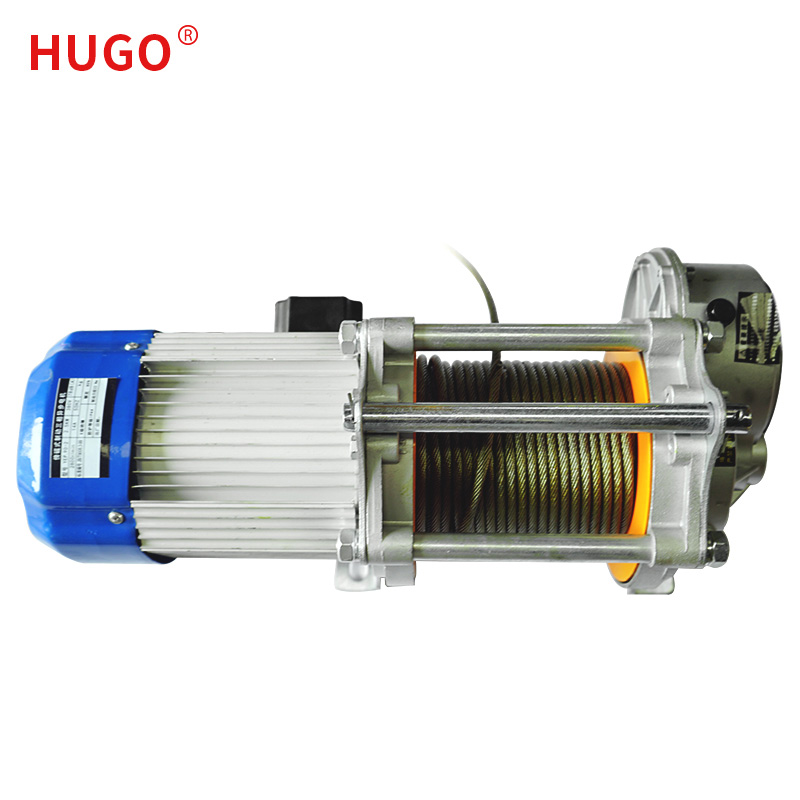

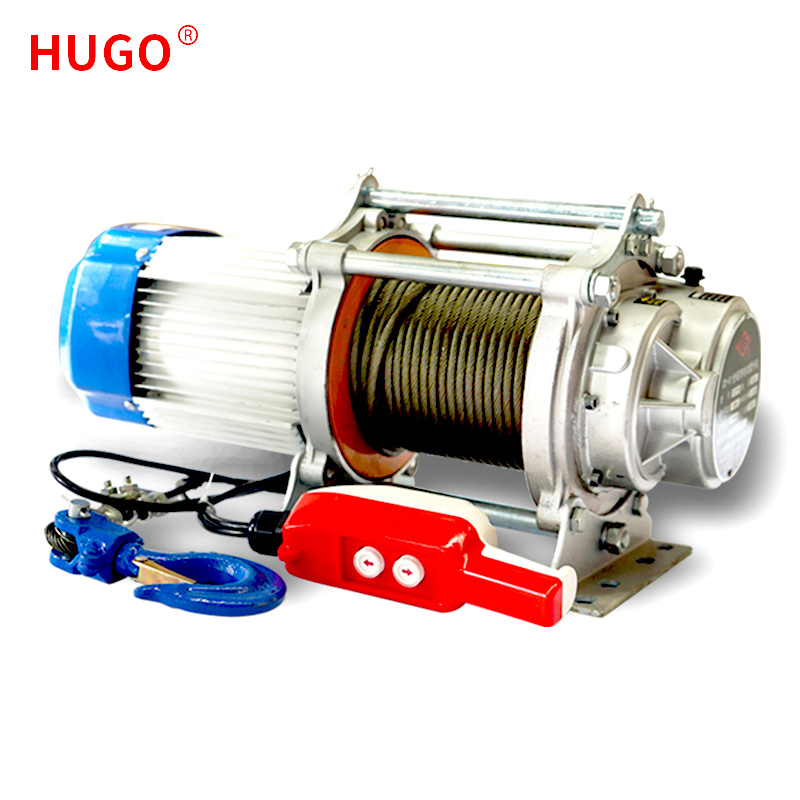

Electric Winch 220v

The Electric Winch 220v is a type of lifting hoist available in two primary categories: household miniature hoists and industrial miniature hoists. These are further distinguished into wire rope miniature electric hoists and chain miniature electric hoists, collectively known as civilian electric hoists.These hoists come in fixed and operating types, adaptable for various settings, capable of lifting objects weighing under 1000 kg. They excel particularly in scenarios such as high-rise buildings where lifting heavy items from lower floors is necessary. Characterized by a simple structure, easy installation, compact and refined design, these hoists operate on single-phase electricity, serving as a convenient power source.

Send Inquiry PDF DownLoad

Product Description

The Electric Winch 220v finds optimal use in both daily civilian applications and industrial production lines. Its versatility spans across various modern industrial settings such as assembly lines, logistics transportation, machinery manufacturing, electronics, automobiles, shipbuilding, and high-tech industrial zones.

In warehouses, docks, ingredient handling, suspended operations, and confined workspaces, its exceptional quality and functionality are prominently displayed. It serves as an ideal complementary product for fixed column and wall jib cranes, enhancing their lifting capabilities.

This electric winch boasts an attractive appearance, well-thought-out structure, hassle-free installation, minimal noise output, and utmost safety and reliability in its operation. Consequently, it enjoys widespread utilization in factories, workshops, residences, warehouses, restaurants, shopping complexes, interior decor, transportation, and other diverse settings.

Product Specification

No .	USAGE	Voltage(V)	Input power(w)	Capacity (kg)	Lifting speed(m/min)	Lifting height(m)
DR-590100100	Single hook	220V/50Hz	480	100	10	10/12/20/30
DR-590100100	Double hook	220V/50Hz	480	200	5	5/6/10/15
DR-590100101	Single hook	220V/50Hz	540	125	10	10/12/20/30
DR-590100101	Double hook	220V/50Hz	540	250	5	5/6/10/15
DR-590100102	Single hook	220V/50Hz	600	150	10	10/12/20/30
DR-590100102	Double hook	220V/50Hz	600	300	5	5/6/10/15
DR-590100103	Single hook	220V/50Hz	950	200	10	10/12/20/30
DR-590100103	Double hook	220V/50Hz	950	400	5	5/6/10/15
DR-590100104	Single hook	220V/50Hz	1020	250	10	10/12/20/30
DR-590100104	Double hook	220V/50Hz	1020	500	5	5/6/10/15
DR-590100105	Single hook	220V/50Hz	1200	300	10	10/12/20/30
DR-590100105	Single hook	220V/50Hz	1200	600	5	5/6/10/15
DR-590100106	Single hook	220V/50Hz	1300	400	10	10/12/20/30
DR-590100106	Double hook	220V/50Hz	1300	800	5	5/6/10/15
DR-590100107	Single hook	220V/50Hz	1600	500	10	10/12/20/30
DR-590100107	Double hook	220V/50Hz	1600	990	5	5/6/10/15
DR-590100108	Single hook	220V/50Hz	1250	350	10	10/12/20/30
DR-590100108	Double hook	220V/50Hz	1250	700	5	5/6/10/15
DR-590100109	Single hook	220V/50Hz	1800	600	10	10/12/20/30
DR-590100109	Double hook	220V/50Hz	1800	1200	5	5/6/10/15

Feature And Application

The Electric Winch 220v is an extensively utilized equipment found across a diverse range of settings, including factories, workshops, homes, warehouses, restaurants, shopping malls, decoration, transportation, and numerous other locations. Its widespread application extends into modern industrial domains such as production lines, assembly machines, logistics transportation, and various industries like machinery manufacturing, electronics, automobiles, shipbuilding, and high-tech industrial zones. Notably, in environments such as warehouses, docks, ingredient handling areas, hanging basket operations, and confined workspaces, its exceptional quality becomes more evident. This winch stands out as an excellent support system for fixed column and wall jib cranes, enhancing their lifting capabilities effectively. Its aesthetic appeal, sensible design, effortless installation, low operational noise, and utmost safety and reliability further contribute to its popularity and widespread adoption in diverse spaces such as factories, workshops, homes, warehouses, restaurants, shopping centers, interior design settings, and transportation hubs.

Products Details

Electric Winch 220v has the advantages of simple structure, convenient installation and small size. It uses single-phase electricity as the power source and can be operated at home with 220 v.

Electric Winch 220v
