Electric Chain Hoist 5ton
  • Electric Chain Hoist 5tonElectric Chain Hoist 5ton
  • Electric Chain Hoist 5tonElectric Chain Hoist 5ton
  • Electric Chain Hoist 5tonElectric Chain Hoist 5ton
  • Electric Chain Hoist 5tonElectric Chain Hoist 5ton
  • Electric Chain Hoist 5tonElectric Chain Hoist 5ton

Electric Chain Hoist 5ton

Shanghai Yiying Lifting Machinery Co., Ltd. offers three electric chain hoists designed for safety and durability in lifting applications. With a lifting capacity of up to 30 tons, the HSY electric chain hoist meets your needs for safety and durability in industrial applications and high standard workstations. With its low headroom, hook and electric sports car features, this electric chain hoist can meet the requirements of specific workstations. Welcome to buy Electric Chain Hoist 5ton from us. Every request from customers is being replied within 24 hours.

Send Inquiry    PDF DownLoad

Product Description

Product Introduction:

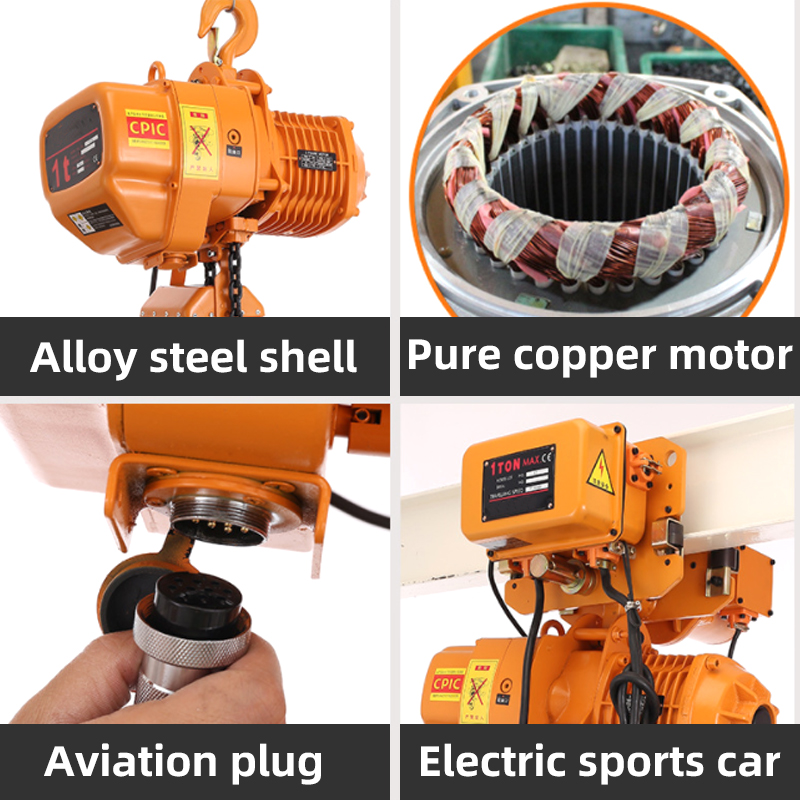

Electric chain hoist 5ton it has aluminum alloy shell, solid and light. Features heat sink, fast heat dissipation, can be used continuously, and the efficiency is up to 40%. This hoist is designed with precision and operates with ease to make your lifting process smooth.


Walkie stacker Specification

Model

0.5-01S

01-01S

01-02S

02-01S

02-02S

03-01S

03-02S

03-03S

05-02S

Capacity

0.5

1

1

2

2

3

3

3

5

Lifting Speed

7.2

6.8

3.6

8.8

6.6

3.4

5.6

5.6

2.8

Motor Power

1.1

1.5

1.1

3.0

1.5

3.0

3.0

1.5

3.0

Rotation speed

1440

Insulation Grade

F Level

Traveling Speed

Slow 11m/min &Fast 21m/min

Power supply

3-phase 380V 50HZ

Control Voltage

24V 36V 48V

NO. Of load chain

1

1

2

1

2

1

2

3

2

Spec. Of load chain

6.3

7.1

6.3

10.0

7.1

11.2

10.0

7.1

11.2

Net Weight

47

65

53

108

73

115

131

85

145

I-Beam

75-125

75-178

75-178

82-178

82-178

100-178

100-178

100-178

112-178


Feature And Application


One of the standout features of this Electric Chain Hoist is its heat sink, which enables fast heat dissipation.  This means that it can be used continuously without any risk of overheating.  In fact, with an efficiency rating of up to 40%, this hoist is a cost-effective and reliable option for any business that needs to lift heavy objects.But that's not all - this hoist also boasts easy-to-use controls, making it simple for anyone to operate.  With a push-button control panel, you can easily adjust the height and speed of your lift, giving you complete control over your lifting tasks.

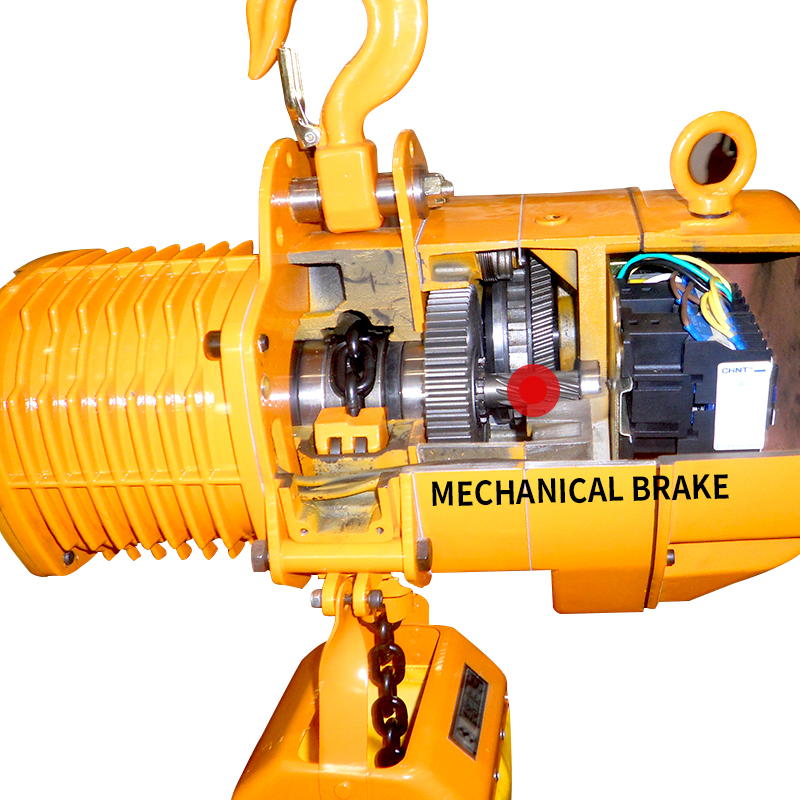

In addition, the Electric Chain Hoist 5ton is designed with safety in mind.  It has a robust safety brake system that ensures the hoist stays securely in place, even during a power failure or other unexpected event.



Walkie Stacker Details

Electric chain hoist 5ton Limit switch: There are limit switch devices on the hanging and hanging, which can automatically stop, prevent the chain from exceeding, and ensure safety.
Electric chain hoist 5ton Chain: G80 super heat treated alloy steel chain. Safe to use in rainwater, seawater chemicals and other harsh conditions.
Electric chain hoist 5ton Hook: Hot forged, excellent strength, not easy to break. The lower hook can be rotated 360 degrees, and the safety tongue is attached to ensure safe operation. Support frame: The lifting support frame is composed of two steel plates, which is very strong.
Electric chain hoist 5ton Transformer: 24V/36V transformer device. During operation, it is 10,000-leakage, which can prevent accidents, and can ensure safe use when it rains. Electromagnetic contactor: High-efficiency electromagnetic contactor, can be used at high frequency without problems.

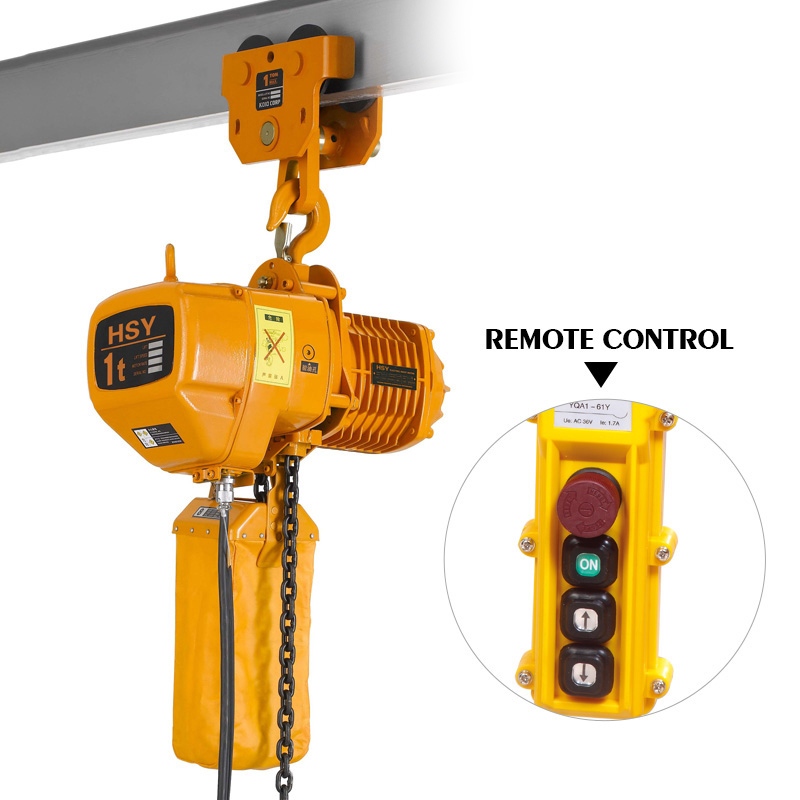

Electric chain hoist 5ton Reverse phase protection device: special wire device, when the power supply wiring is wrong, the control circuit cannot operate. Button switch: Use waterproof button switch, light and durable.
