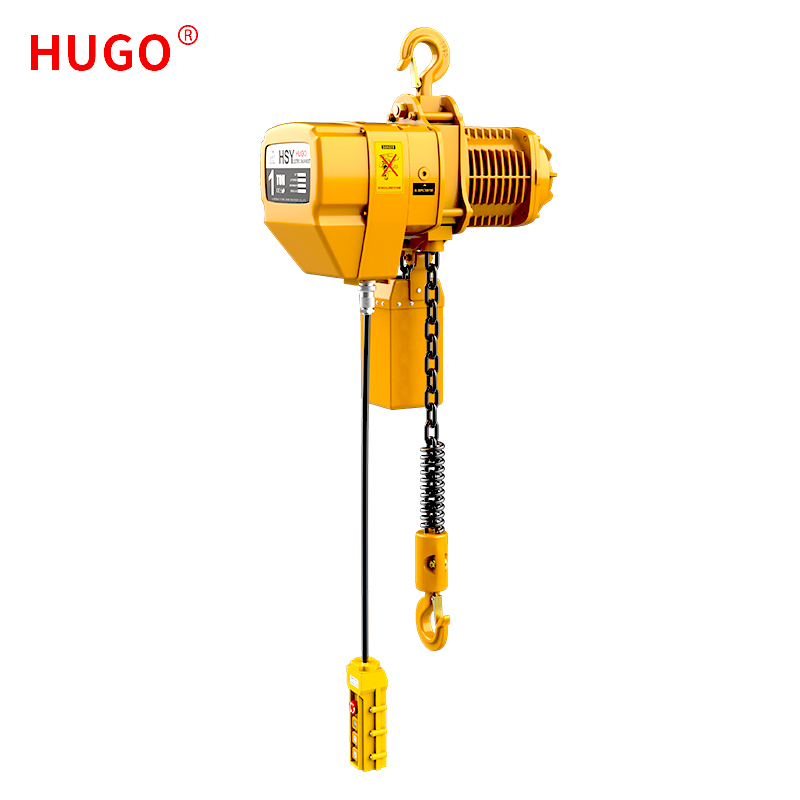

Electric Chain Hoist 500kg is installed on bridge crane and gantry crane. It is characterized by small size, light weight, simple operation and convenient use. The structure is compact, and the electric hoist whose motor axis is perpendicular to the reel axis adopts a worm gear transmission. Widely used in industrial and mining enterprises, warehouses, docks and other places.
The Electric Chain Hoist 500kg is a light and small lifting device, which consists of a motor, a transmission mechanism and a sprocket. It is produced according to international standards. The body is beautiful, sturdy and durable. All internal gears are treated with high-temperature quenching, which increases the wear resistance and toughness of the gears. Our hoists adopt the most advanced technology in the world, with fine workmanship and well-coordinated gears.
Model |
0.5-01s |
01-01s |
01-02s |
02-01s |
02-02s |
03-01s |
03-02s |
03-03s |
05-02s |
Capacity(ton) |
0.5 |
1 |
1 |
2 |
2 |
3 |
3 |
3 |
5 |
Lifting speed(m/min) |
7.2 |
6.8 |
3.6 |
6.6 |
3.4 |
5.6 |
3.3 |
2.2 |
2.8 |
MotorPower(kw) |
1.1 |
1.5 |
1.1 |
3.0 |
1.5 |
3.0 |
3.0 |
1.5 |
3.0 |
Ratation Speed(r/min) |
1440 |
||||||||
Insulation Grade |
F level |
||||||||
Travelling Speed(m/min) |
Slow 11m/min &Fast 21m/min |
||||||||
Power supply |
3-phase 380V 50HZ |
||||||||
Control Voltage |
24V 36V 48V |
||||||||
No.of load Chain |
1 |
1 |
2 |
1 |
2 |
1 |
2 |
3 |
2 |
Spec Load chain(mm) |
6.3 |
7.1 |
6.3 |
10 |
7.1 |
11.2 |
10 |
7.1 |
11.2 |
Net Weight(kg) |
47 |
65 |
53 |
108 |
73 |
115 |
131 |
85 |
145 |
I -beam(mm) |
75-125 |
75-178 |
75-178 |
82-178 |
82-178 |
100-178 |
100-1788 |
100-178 |
112-178 |
The Electric Chain Hoist 500kg hook-type shell is light and strong, with high heat dissipation rate. The fully sealed design is suitable for use in environments with poor operating conditions. It can be used in the factory , warehouse and outdoors , and can be used in Pharmaceutical food factories and chemical plants. It is fixed in a designated position and is generally suitable for lifting goods in a fixed place.(The running electric hoist is a running sports car added to the ordinary electric hoist, which can not only lift up and down, but also move left and right on the I-beam track. It is more suitable for larger use places such as major factories, warehouses, wind power generation, logistics, docks, and buildings. The operating type is more convenient to use, and the operating type of the electric hoist 500kg can be adjusted to reach directly above the heavy object without moving the heavy object, and the lifting work is more labor-saving.
The Electric Chain Hoist 500kg is made of aluminum alloy shell, light but hard ,the cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service,the integral enclosed structure is applicable to places like chemical plant and electroplate factory.
Side magnetic braking device,the magnetic force generator is the latest design which is featured for generating magnetic force.it allows instant brake as soon as the electric power is cut off,thus the braking safety while loading is guaranteed.
The Electric Chain Hoist 500kg limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
The chain shall adopt the imported G80 ultra heat-treatable aluminum alloy chain, it can be safety used in poor environments such as rain ,sea water and chemicals
The Electric Chain Hoist 500kg hook is hot forging with perfect strength that is hard to break .the operation safety of the lower hook is ensured by its 360 degrees rotation safety tongue piece.
the push button is waterproof push button .it is light and durable,it is 0.1kg, easy for operating .
