As a professional manufacturer, we would like to offer you HUGO® 1 Ton Mini Electric Hoist Winch, which is a light and small lifting equipment. Our 1 Ton Mini Electric Hoist Winch are all produced in accordance with international standards, and the fuselage is beautiful in appearance and durable. It adopts the most advanced technology in the world, with fine workmanship and tight fit between gears. All internal gears are treated with high-temperature quenching, which increases the wear resistance and toughness of the gears.
As the professional manufacture, we would like to provide you HUGO® 1 Ton Mini Electric Hoist Winch. Since its establishment, the company has always adhered to the business philosophy of quality first, customer first, high-quality service, and honest management, and has done every detail of the product with the spirit of craftsmanship to serve every customer well. With high-quality products, good reputation and high-quality service, the products sell well in Europe, America, Southeast Asia, the Middle East and other markets. We sincerely cooperate with customers and merchants for win-win, common development and common progress.
Product Introduction

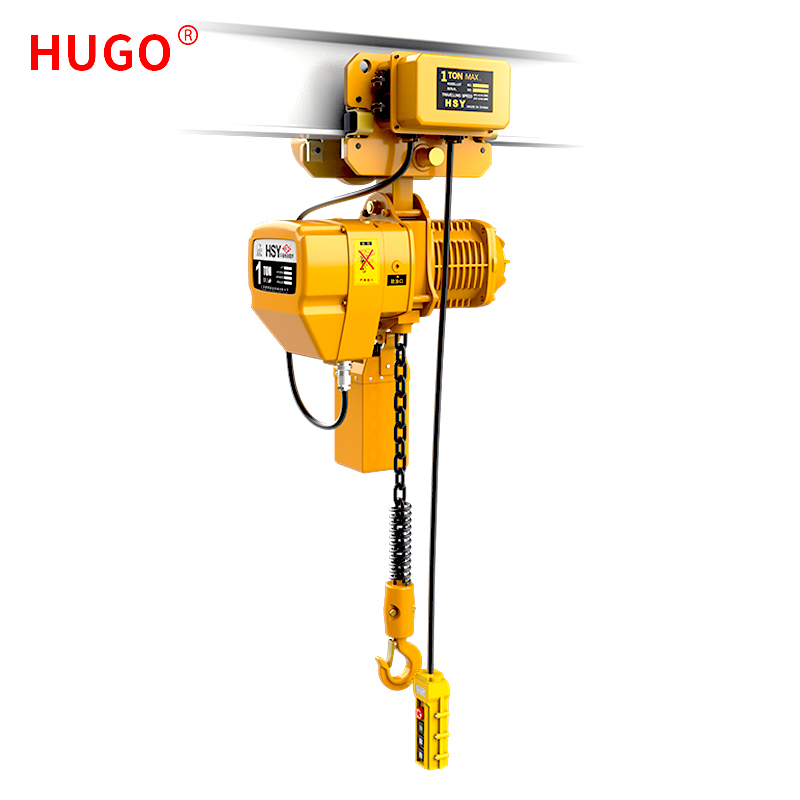

1 Ton Mini Electric Hoist Winch is a kind of light and small lifting equipment. It consists of a motor, a transmission mechanism and a sprocket. The lifting weight is generally 0.1 to 60 tons, and the lifting height is 4 to 20 meters. It is widely used in various industries such as docks, factories, warehouses, construction and assembly line production operations. Electric hoists 1 Ton can be installed on suspended I-beams, flexible rails, cantilever guide rails and fixed lifting points for transportation of goods, and can also be used in low workshops and places that are not suitable for erecting bridge cranes, as well as the volume of wire rope electric hoists. Use in oversized places. Most Electric hoists 1 Ton are operated by people using buttons to follow the ground. They can also be operated in the control room or wired (wireless) remote control. The Electric hoists 1 Ton can be used for fixed suspension, and can also be equipped with an electric running trolley and a hand-push and hand-pull trolley.
Model |
0.5-01S |
01-01S |
01-02S |
02-01S |
02-02S |
03-01S |
03-02S |
03-03S |
05-02S |
Capacity |
0.5 |
1 |
1 |
2 |
2 |
3 |
3 |
3 |
5 |
Lifting Speed |
7.2 |
6.8 |
3.6 |
8.8 |
6.6 |
3.4 |
5.6 |
5.6 |
2.8 |
Motor Power |
1.1 |
1.5 |
1.1 |
3.0 |
1.5 |
3.0 |
3.0 |
1.5 |
3.0 |
Rotation speed |
1440 |
||||||||
Insulation Grade |
F Level |
||||||||
Traveling Speed |
Slow 11m/min &Fast 21m/min |
||||||||
Power supply |
3-phase 380V 50HZ |
||||||||
Control Voltage |
24V 36V 48V |
||||||||
NO. Of load chain |
1 |
1 |
2 |
1 |
2 |
1 |
2 |
3 |
2 |
Spec. Of load chain |
6.3 |
7.1 |
6.3 |
10.0 |
7.1 |
11.2 |
10.0 |
7.1 |
11.2 |
Net Weight |
47 |
65 |
53 |
108 |
73 |
115 |
131 |
85 |
145 |
I-Beam |
75-125 |
75-178 |
75-178 |
82-178 |
82-178 |
100-178 |
100-178 |
100-178 |
112-178 |
1 Ton Mini Electric Hoist Winch can be installed on suspended I-beams, flexible rails, cantilever guide rails and fixed lifting points for transportation of goods, and can also be used in low workshops and places that are not suitable for erecting bridge cranes, as well as the volume of wire rope electric hoists. Use in oversized places. Most Electric hoist 1 Ton are operated by people using buttons to follow the ground. They can also be operated in the control room or wired (wireless) remote control. The Electric hoist 1 Ton can be used for fixed suspension, and can also be equipped with an electric running trolley and a hand-push and hand-pull trolley.
The 1 Ton Mini Electric Hoist Winch is equipped with a double brake system, and is also equipped with a pound magnetic brake and a mechanical brake. It can be stopped immediately when the goods are required to stop, which is safer.
The shell of 1 Ton Mini Electric Hoist Winch is an aluminum alloy shell, which is solid and light, and dissipates heat quickly. Supports continuous use, and the efficiency is as high as 40%. There is a sealed structure to protect the inner motor.
The 1 Ton Mini Electric Hoist Winch is equipped with a limit switch, which automatically stops when the goods are pulled to the top to prevent impact on the hoist and damage to the hoist. It stops automatically when it is at the bottom to prevent the chain from exceeding.
The chain electric hoist 1 Ton adopts G80 manganese steel chain, which has four times the breaking force, which is less likely to break when lifting the goods, and the safety factor is higher.
The rubber-coated handle of electric hoist 1 Ton is waterproof, and the texture is light and durable. It is equipped with an emergency stop button, which can make the machine stop operation in case of sudden problems.
The hook of electric hoist 1 Ton uses forging technology, the safety factor is 1.25 times, and it can be rotated 360° flexibly.
